• Easy-to-use, PID function selectable
• Relay or SSR ouput, selectable via DIP switch for output1
• Can chose one of them : Relay, Alarm2, RS485 and 4~20mA for output2
• Accepts thermocouple, platinum RTD or 4~20mA* inputs
• Heating or cooling control selectable
• Panel lock protection function
• Sensor malfunction detection function

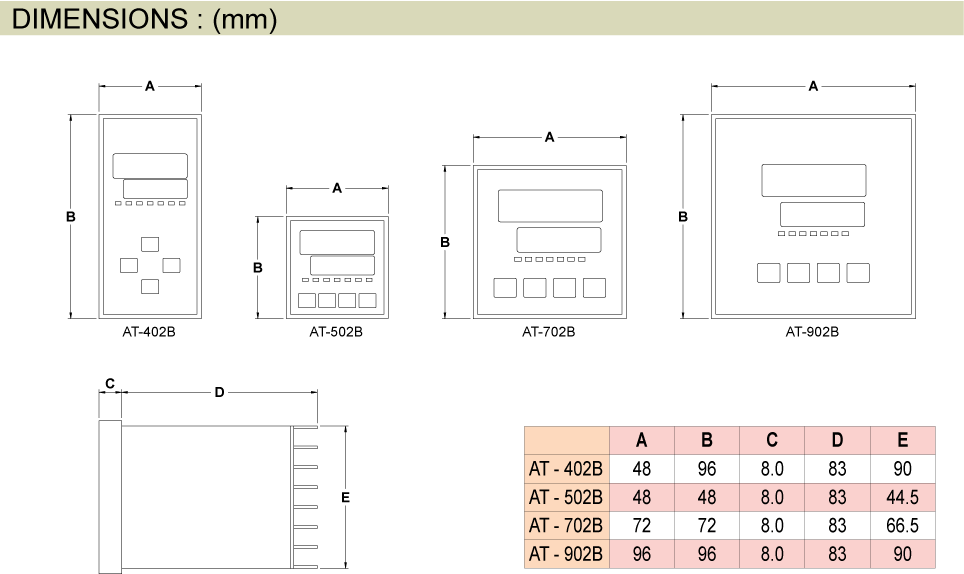

• Available in 4 sizes : 48 x 48mm(1/16DIN), 48 x 96mm(1/16DIN), 72 x 72, 96 x 96mm(1/4DIN)

      Note. It depend on what input type do you select.
